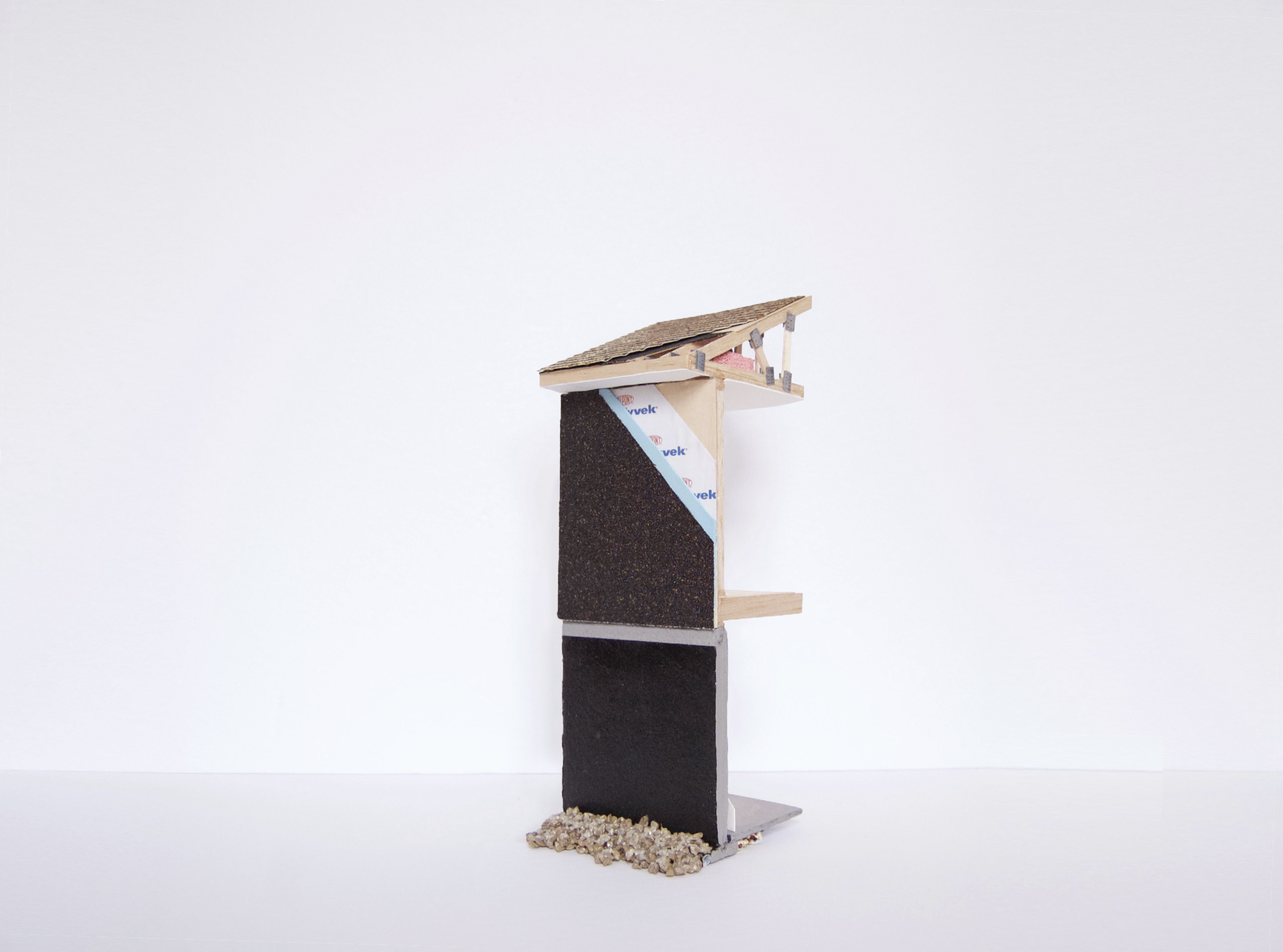

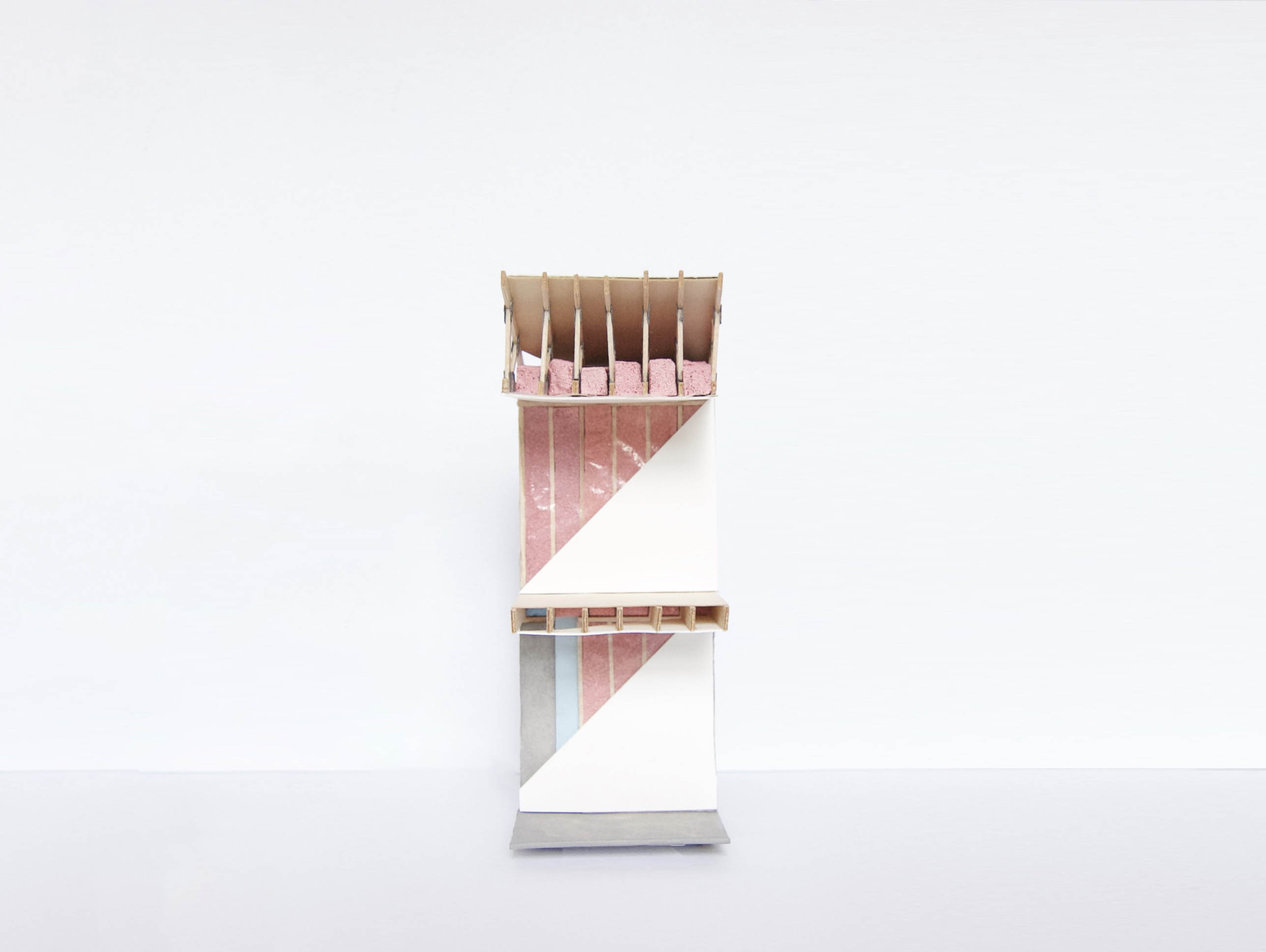

Wood Frame Wall

︎

Fall 2019
1/4” = 1’ - 0”

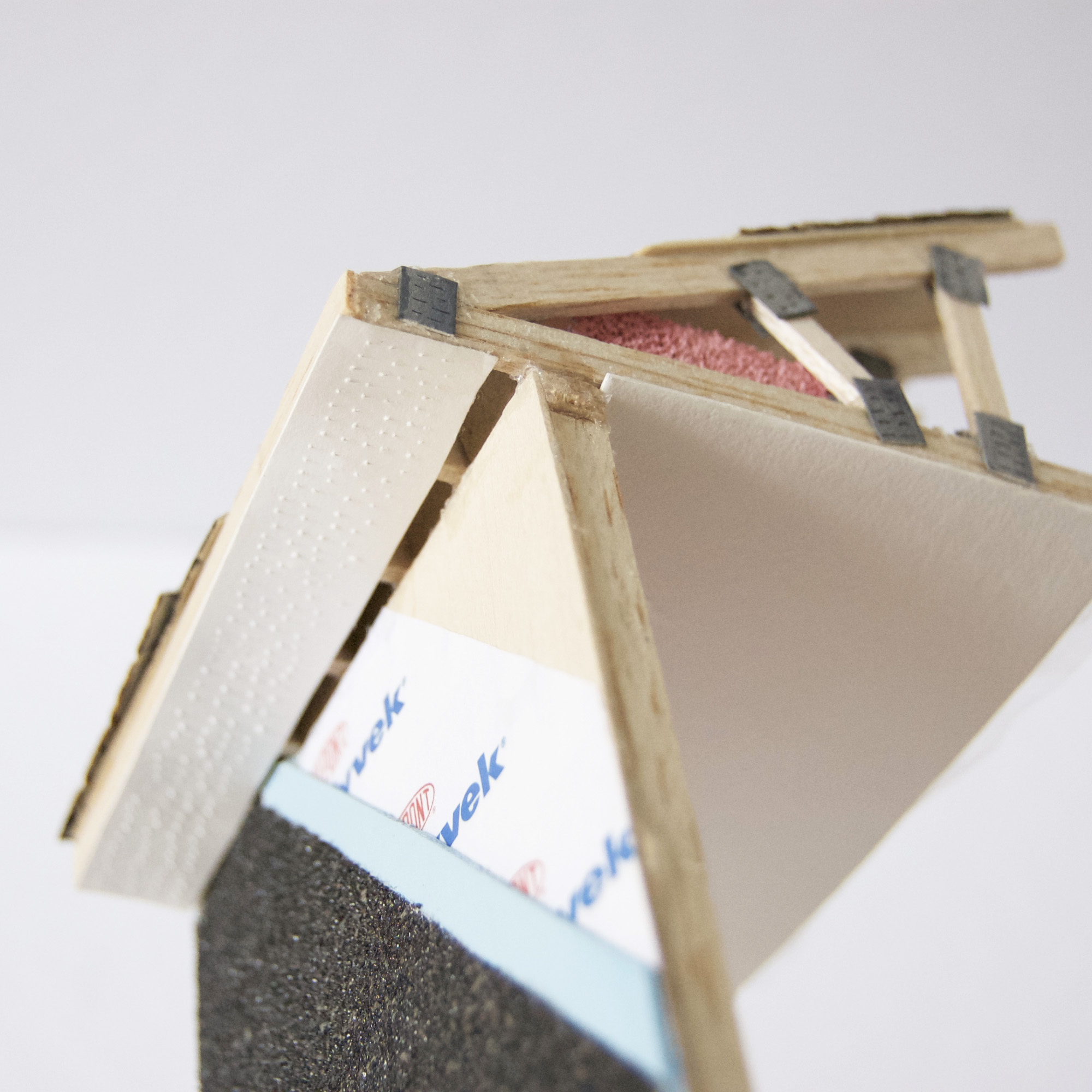

^{Roof:

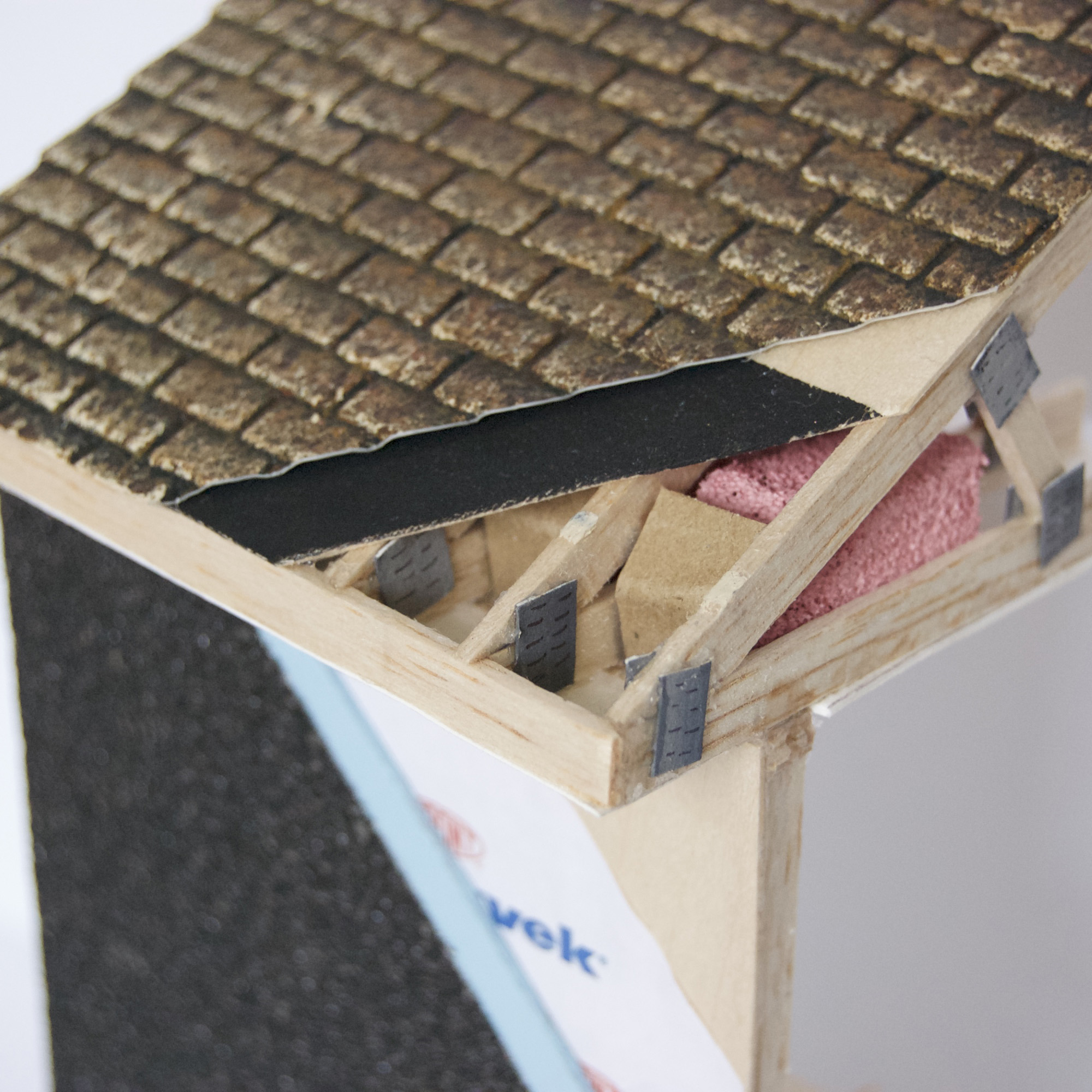

Shingles

36” High eaves protection

5/8” Plywood sheathing

2” x 6” Top chord

2” x 6” Bottom chord

Gusset plates

2” x 6” Fascia

Baffle

13” Batt insulation

Eavestrough

Perforated aluminum soffit

Wall:

1 1/2” EIFS stucco

Air barrier

5/8” Plywood sheathing

5 1/2” Batt insulation

Vapour barrier

1/2” Gypsum board

2” x 6” @ 16” o/c Wall studs

2” x 6” Sill plate

Sill gasket

5/8” Plywood subfloor sheathing

Foundation:

Anchor bolt

Water proofing

8”- 20 MPA poured concrete

1” air space

1 1/2” Rigid insulation (R 7.5)
3 1/2” Batt insulation (R 14)
Vapour barrier

1/2” Gypsum board

Min. 6” Clear stone cover

Min. 4” Weeping tile

20” x 6” Concrete footing} ︎
^{Curtain Wall

GR House}
